UPS Details
Innovative 3 Level Technology

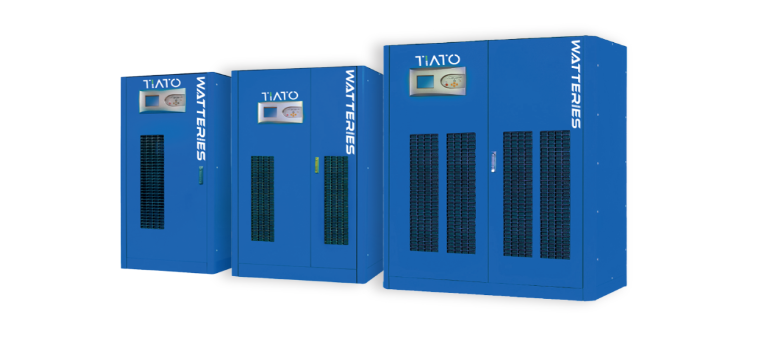

Tiato Series with Innovative 3 Level Technology is a true on-line double conversion, three-phase UPS system that provides one of the highest level energy efficiencies in the industry.
Three level inverter & rectifier design Tiato Series brings the newest power conversion technology and delivers efficiency up to 96% at 50-75% load operation which is the most common operating range.
TIATO 10-120 kVA
| MODEL | 10kVA | 15kVA | 20kVA | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA | 80kVA | 100kVA | 120kVA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 10kVA | 15kVA | 20kVA | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA | 80kVA | 100kVA | 120kVA |
| Power Watt | 9kW | 13.5kW | 18kW | 9kW | 13.5kW | 18kW | 27kW | 36kW | 54kW | 72kW | 90kW | 108kW | 72kW | 90kW | 108kW |
| INPUT | |
|---|---|
| Naminal Voltage | 380/400/415 VAC 3 P+N (Opsiyonel 220/380 VAC -%37 +%22 3 P+N+PE) |
| Voltage tolerance | -%20 +%15 |
| Frequency Tolerance | 50 / 60 Hz ±%10 (Selectable) |
| Power Factor | 0.99 |
| THD (THDv) | 3% |
| Output | |
|---|---|
| Power Factor | 0.9 [1 Optional] |
| Nominal Voltage | 380/400/415 VAC 3 P + N |
| Efficiency [Online Mode] | Up to 96% |
| Efficiency [Eco Mode] | Up to 99% |
| Frequency Tolerance | 50Hz / 60Hz ±0,01% (Battery Mode) |
| Output THD | Linear Load < 1% Non-Linear Load < 3% |
| Crest Factor (CF) | 3:1 |
| Overload Capacity* | At 125% Load 10min, at 150% Load 1min |
| WEIGHT, DIMENSIONS | 10kVA | 15kVA | 20kVA | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA | 80kVA | 100kVA | 120kVA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cabinet Dimensions (mm) Width | 370 | 370 | 370 | 490 | 490 | 490 | 490 | 490 | 490 | 530 | 530 | 530 | 763 | 810 | 810 |
| Cabinet Dimensions (mm) Depth | 660 | 660 | 660 | 805 | 805 | 805 | 805 | 805 | 805 | 780 | 780 | 780 | 771 | 820 | 820 |
| Cabinet Dimensions (mm) Height | 850 | 850 | 850 | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 | 1290 | 1290 | 1290 | 1555 | 1705 | 1705 |
| Net Weight (kg) | 85 | 85 | 85 | 125 | 126 | 131 | 145 | 173 | 323 | 331 | 353 | 368 | |||
| Packaging Dimensions (mm) Width | 500 | 500 | 500 | 600 | 600 | 600 | 600 | 600 | 600 | 650 | 650 | 650 | 900 | 900 | 900 |
| Packaging Dimensions (mm) Depth | 760 | 760 | 760 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 970 | 970 | 970 |
| Packaging Dimensions (mm) Height | 1000 | 1000 | 1000 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 2040 | 2040 | 2040 |
| Net Weight (kg) | 105 | 105 | 105 | 145 | 146 | 151 | 166 | 193 | 353 | 361 | 383 | 398 |
TIATO 160-1000 kVA
| MODEL | 160kVA | 200kVA | 250kVA | 300kVA | 400kVA | 500kVA | 600kVA | 800kVA | 1000kVA |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 160kVA | 200kVA | 250kVA | 300kVA | 400kVA | 500kVA | 600kVA | 800kVA | 1000kVA |
| Power Watt | 144kW | 180kW | 225kW | 270kW | 360kW | 450kW | 540kW | 720kW | 900kW |
| INPUT | |
|---|---|
| Naminal Voltage | 380/400/415 VAC 3 P+N (Optional 220/380 VAC -37% +22% 3 P+N+PE) |
| Voltage tolerance | -20% +15% |
| Frequency Tolerance | 50 / 60 Hz ±10% (Selectable) |
| Power Factor | >0.99 |
| THD (THDv) | <3% |
| OUTPUT | |
|---|---|
| Power Factor | 0.9 (1 Optional) |
| Nominal Voltage | 380/400/415 VAC 3 P+N |
| Efficiency [Online Mode] | Up to 96% |
| Efficiency [Eco Mode] | Up to 99% |
| Frequency Tolerance | 50 / 60 Hz ±0,01% (Battery Mode) |
| Output THD | Linear Load <1% / Non-Linear Load <3% |
| Crest Factor (CF) | 3:1 |
| Overload Capacity* | At 125% Load 10min, At 150% Load 1min |
| WEIGHT, DIMENSIONS | 160kVA | 20kVA | 250kVA | 300kVA | 400kVA | 500kVA | 500kVA | 800kVA | 1000kVA |
|---|---|---|---|---|---|---|---|---|---|
| Cabinet Dimensions (mm) Width | 830 | 830 | 830 | 1200 | 1200 | 1200 | 2000 | 2000 | 2000 |
| Cabinet Dimensions (mm) Depth | 870 | 870 | 870 | 825 | 825 | 825 | 870 | 870 | 870 |
| Cabinet Dimensions (mm) Height | 1800 | 1800 | 1800 | 1854 | 1854 | 1854 | 2050 | 2050 | 2050 |
| Net Weight (kg) | 475 | 490 | 553 | 830 | 840 | 850 | 1510 | 1740 | 1740 |
| Packaging Dimensions (mm) Width | 900 | 900 | 900 | 1370 | 1370 | 1370 | 2100 | 2100 | 2100 |
| Packaging Dimensions (mm) Depth | 970 | 970 | 970 | 845 | 845 | 845 | 950 | 950 | 950 |
| Packaging Dimensions (mm) Height | 2040 | 2040 | 2040 | 2040 | 2040 | 2040 | 2250 | 2250 | 2250 |
| Net Weight (kg) | 505 | 520 | 583 | 870 | 880 | 890 | 1590 | 1820 | 1820 |
