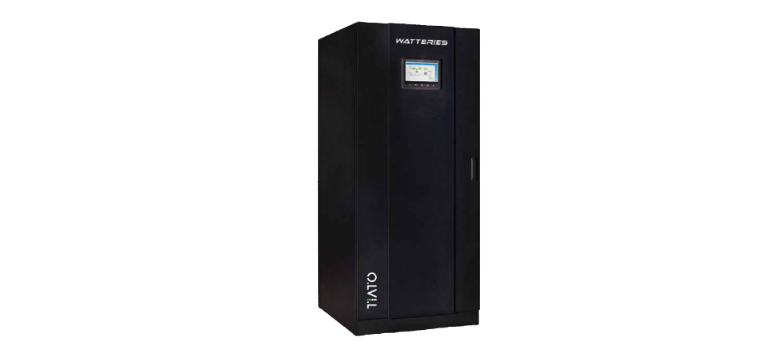

TIATO Static Frequency Converter

Watteries range of Static Frequency Converters are designed and built for the harshest conditions and to provide high reliable power supply converting 50Hz supply to 60Hz equipment and to different voltages.

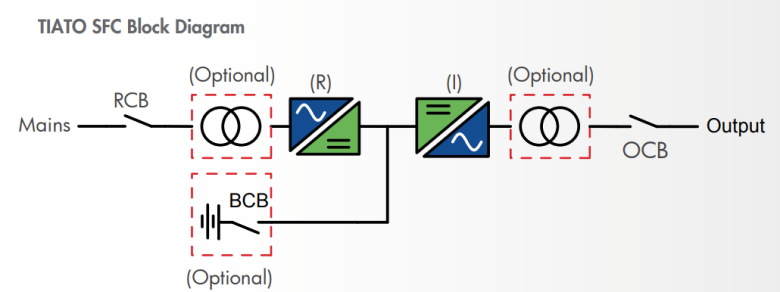

Using state-of-the-art IGBT technology with DSP (Digital Signal Processors) controls we convert the input AC power through a IGBT PFC sine-wave rectifier to DC and then to an AC sine-wave IGBT inverter to produce a full sine-wave output at the new frequency and voltage.

6kVA–800kVA

The result of extensive experience acquired in the UPS industry, the TIATO SFC Series is distinguished by the use of technologically advanced components and for excellent reliability, ease of maintenance and ease of operation.

Thanks to integrated input/output transformer to ensure the galvanic isolation of the load from mains disturbances under all conditions, the output voltage is adjustable between 380V and 480V and SFC Series are ideal for marine, ports, aviation, defence, transportation and mining applications.

The TIATO SFC has been designed to minimise the impact on the mains or on the generator located upstream, thanks to the low harmonic content at the input and the progressive start of the rectifier. These features make them especially compatible with generators. TIATO SFC is also available as UPS with battery back-up on request
