* ABB

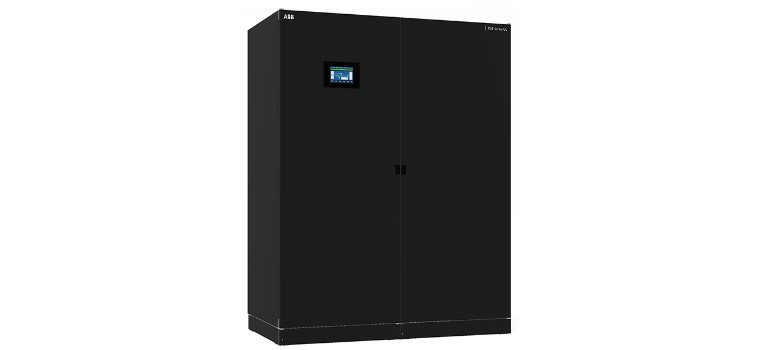

* TLE Series UL 480V
* Innovative technology and best-in-class efficiency TLE Series 160-1000kW 60Hz UL UPS brings the latest power conversion technology to the marketplace, using a three-level inverter design and a multi-mode architecture that makes real time decisions between premium protection mode and premium efficiency mode. The TLE Series UPS was developed using ABB's Design for Six Sigma (DFSS) methodology to ensure that the product meets customer requirements for reliability and quality.

UPS Details


Description

ABB’s TLE Series UPS UL 160–1000kW The TLE Series is one of the best-performing threephase UPS systems for providing critical power protection in a wide range of applications. The UPS operates in VFI (voltage frequency independent) mode and uses an innovative control algorithm with three-level converter technology to achieve very high efficiency levels. This innovative product provides best-in-class efficiency in both double conversion mode and in eBoost™ operating mode. The TLE Series UPS provides industry-leading reliability and efficiency, as well as clean power and unity power factor at the output. Reliability can be further increased by using ABB’s unique RPA™ (redundant parallel architecture) technology to operate multiple units in parallel. Throughout their entire life cycle, all ABB UPS systems are fully supported by teams that provide training, application expertise and 24/7 preventive and corrective service.

Power Rating* 160 200 225 250 400 500 750 1000
Output Power Rating (kVA) 160 200 225 250 400 500 750 1000
Ouput Power Rating (kW) 160 200 225 250 400 500 750 1000
Energy Usage
eBoost Mode Efficiency at 50% Load 98.2% 98.3% 98.2% 98.3% 98.2% 98.3% 98.2% 98.4%
eBoost Mode Efficiency at 100% Load 98.6% 98.8% 98.6% 98.8% 98.7% 98.8% 98.8% 98.9%
Dbl Conv Mode Efficiency at 50% Load 96.3% 96.5% 96.3% 96.5% 96.2% 96.4% 96.3% 96.4%
Dbl Conv Mode Efficiency at 100% Load 95.8% 95.0% 95.8% 95.0% 95.2% 95.3% 95.2% 95.2%
Physicals
Dimensions, w x d x h (in.) 43 X 34 X 75 43 X 34 X 75 43 X 34 X 75 43 X 34 X 75 67 X 34 X 75 67 X 34 X 75 102x34x75* 130x34x75*
Weight, module only (lbs.) 1,433 1,433 1,433 1,433/td> 2,314 2,314 4,409 5,510

Key features

  • eBoost, lithium batteries and RPA with intelligent energy management™ (IEM) further improve efficiency.
  • Input from mains conditioned to a sinusoid with 0.99 input power factor and <3%TH Di.
  • Double conversion efficiency up to 96.8%.
  • Output power factor: 1.
  • True front access design.
  • Compact footprint.
  • Intuitive user interface.
  • Extremely low output voltage distortion.
  • Superior battery management.
