UPS Details
Description

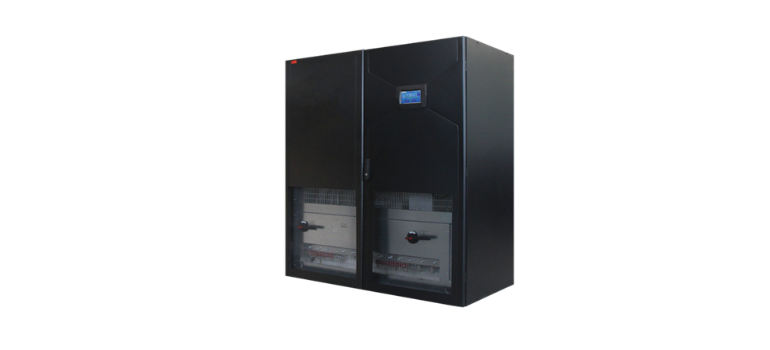

The energy-efficient UPS from 400 to 500 kW.
ABB has always set global standards in uninterruptible power supply (UPS) solutions. The latest generation of PowerWave 33 Plus continues ABB’s tradition of applying state-of-the-art technology to UPS products, and delivering the best combination of energy efficiency and overall power performance in the industry.
| Cabinet type | 60–120 kW | 160–200 kW | 250–300 kW | 400–500 kW |
|---|---|---|---|---|
| Dimension w×h×d | 615× 1975×480mm | 850×1820×750mm | 1100× 1920×750mm | 1650×1994×850mm |
| Footprint | 0.3m2 | 0.64m2 | 0.82m2 | 1.4m2 |
UPS cabinet configuration
- Online double conversion UPS.
- HMI interface with mimic diagram and LCD (60– 200kW).
- Graphical touch screen display (250–500kW units).
- Input, bypass and battery protection fuses.
- Manual bypass switch (optional for the units 400–500kW).
- Single- and dual-input feed available.
- Communication interfaces: RS-232 port and 5 input dry contacts (incl.EPO and GEN On).
Options
- Integrated back-feed protection.
- Parallel system kit.
- Synchronization kit.
- Battery temperature sensor.
- Remote panel (graphical touch screen display).
- Halogen-free cabling.
- IP21.
- Control and monitoring (relay card, ModBus RS485, ModBus TCP/IP, SNMP).
- External battery cabinets.
- Top cable entry enclosure (400–500kW units).
