UPS Details
Description
Compact, scalable, cost-saving. The standalone three-phase UPS system from 10 to 50 kVA.
This new generation of transformer-less UPS responds to all major concerns of IT and facility managers. As saving costs and 100 percent uptime are their top priorities, PowerScale offers the lowest cost of ownership of any UPS system by providing energy efficiency, scalable flexibility, highest availability and easy serviceability.

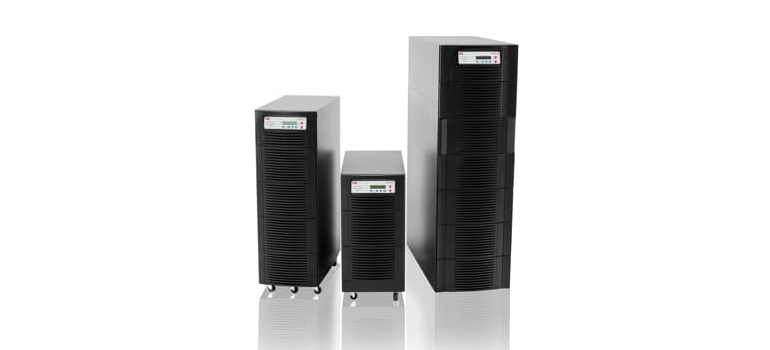

| Cabinet type | Cabinet A: 10–20kVA | Cabinet B: 10–25kVA | Cabinet C: 25–50kVA |
|---|---|---|---|
| Dimension w×h×d | 345×720×710mm | 345× 1045×710mm | 440× 1400×910mm |
| Internal battery capacity | Up to 48 blocks 7/9Ah | Up to 96 blocks 7/9Ah | Up to 144 blocks 7/9Ah or 48 blocks 24/28Ah |
UPS cabinet configuration
- Online double conversion UPS.
- Capacities from 10kVA to 50kVA in three different cabinet sizes.
- Input, bypass and battery protection fuses.
- Manual bypass switch.
- Up to 95.5% efficiency across a wide load range.
- Single- and dual-input feed available.
- Communication interfaces: RS-232 and USB ports, I/O dry contacts (EPO, GEN On, …).
- Free space to place internal batteries.
Options
- Integrated back-feed protection.
- Parallel kit.
- Cold start.
- IP21.
- Halogen-free cabling.
- Battery temperature sensor.
- Communication interfaces: Relay card, ModBus RS-485, ModBus TCP/IP, SNMP.
- Internal batteries.
- External battery cabinets.
