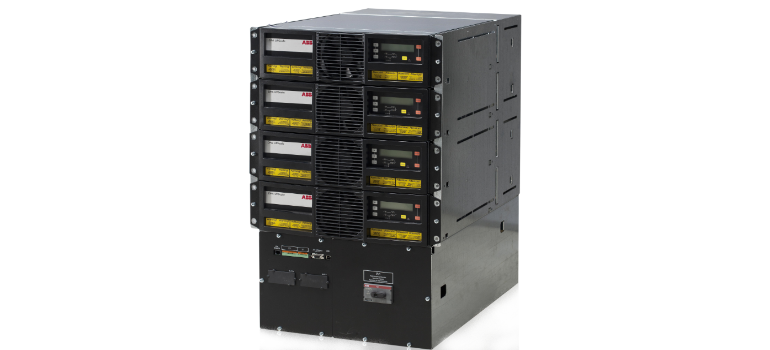

DPA UPScale RI IEC 400V
The energy-efficient, rack-independent modular UPS from 10 to 80 kW ideal for customized solutions
The rack-independent DPA UPScale RI (rack-independent) is one of the most customizable UPS systems on the market and provides the best technical and commercial solutions to meet individual power protection needs. The three-phase and modular UPS system can be integrated into any 19" cabinet, regardless of the rack’s manufacturer.
| Product types with batteries | RI 11 | RI 12 | RI 22 | RI 24 | RI 10 | RI 20 | RI 40 |
|---|---|---|---|---|---|---|---|
| Output power max. | 20 kW | 20 kW | 40 kW | 40 kW | 20 kW | 40 kW | 80 kW |
| Number of batteries | 40 | 80 | 80 | 160 | - | - | - |
| Max. number of modules per system | 8 | 12 | 16 | 18 | 20 | 20 | 20 |
| Dimensions W × H × D (mm) | 488 × 487 × 735(11 HU) | 488 × 665 × 735 (15 HU) | 488 × 798 × 735 (18 HU) | 488 × 1153 × 735 (26 HU) | 488 × 310 × 565 (7 HU) | 488 × 440 × 565 (10 HU) | 488 × 798 × 735 (18 HU) |
| Weight sub-rack (without modules / without batteries) | 40 kg | 56 kg | 66 kg | 93 kg | 20 kg | 25 kg | 50 kg |
| General data | |||||||
|---|---|---|---|---|---|---|---|
| UPS modules | 1 | 1 | 1 | 2 | 2 | 2 | 4 |
| Maximum number of inbuilt batteries | -/td> | 40/td> | 80/td> | -/td> | 80/td> | 160/td> | -/td> |
| Output power max. | 20 kW | 20 kW | 20 kW | 40 kW | 40 kW | 40 kW | 80 kW |
| Output power factor | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Topology | True online double conversion | ||||||
| UPS type | Modular (Decentralized Parallel Architecture) | ||||||
| Cable entry | Rear access |
| INPUT | |
|---|---|
| Nominal input voltage | 3 × 380 / 220 V + N, 3 × 400 / 230 V + N, 3 × 415 / 240 V + N |
| Voltage tolerance (Ref. to 3 × 400 / 230 V) | loads < 100 % (–20 %, +15 %), < 80 % (–26 %, +15 %), < 60 % (–35 %, +15 %) |
| Input distortion THDi | ≤ 3 % at 100 % |
| Frequency | 35 –70 Hz |
| Power factor | 0.99 at 100 % load |
| Output | |
|---|---|
| Rated output voltage | 3 × 380 / 220 V + N, 3 × 400 / 230 V + N, 3 × 415 / 240 V + N |
| Voltage distortion | <1.5% |
| Frequency | 50 Hz or 60 Hz |
| Overload capability | 10 min.: 125 % or 1 min.: 150 % |
| Unbalanced load | 100 % possible |
| Crest factor | 3 : 1 |
| WEIGHT, DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|
| Weight (with modules / without batteries) | Up to 39 kg | Up to 62 kg | Up to 78 kg | Up to 68 kg | Up to 109 kg | Up to 136 kg | Up to 136 kg |
| Dimensions WxHxD (mm) | 488 × 310 × 565 (7 HU) | 488 × 487 × 735 (11 HU) | 488 × 665 × 735 (15 HU) | 488 × 440 × 565 (10 HU) | 488 × 798 × 735 (18 HU) | 488 × 1153 × 735 (26 HU) | 488 × 798 × 735 (18 HU) |

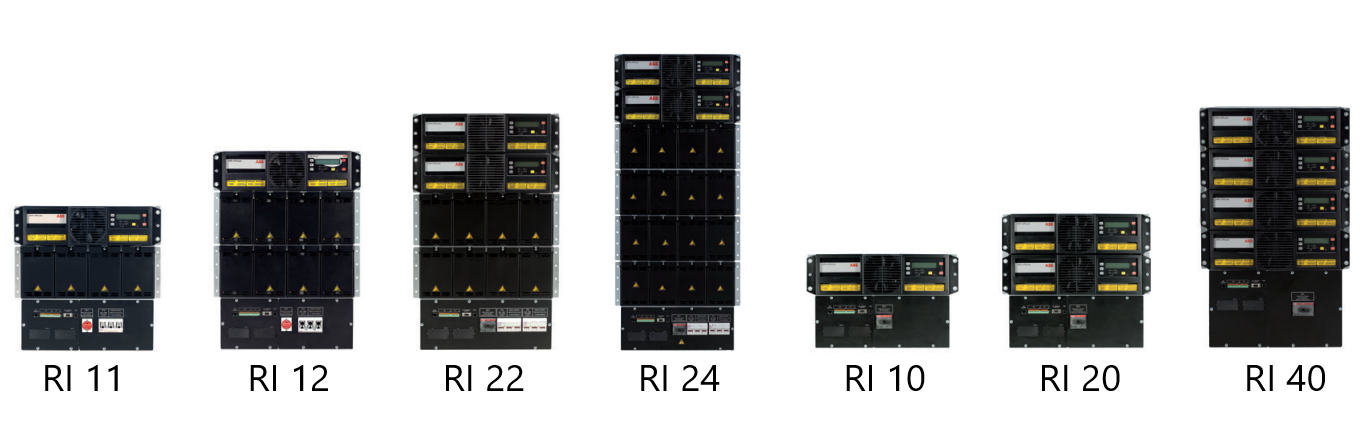

The core elements consist of best-in-class hardware and software that respond to diverse customer applications and changing business needs. All DPA UPScale RI components can be mounted directly in any 482.6 mm (19") cabinet of 800 or 600 mm (RI 10, RI 20) depth. Depending on the requirements, mixed equipment population is also possible. DPA UPScale RI is available in seven configurations – with or without inbuilt battery blocks.
Highlights for system integrators
DPA UPScale RI – safe-swap modularity

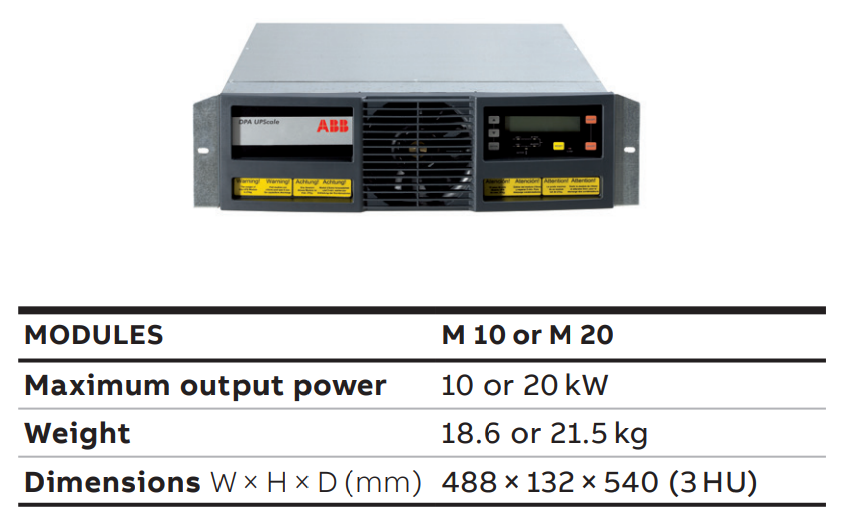

The ability to safe-swap modules significantly reduces the system’s mean time to repair (MTTR) and simplifies system upgrades. Thanks to the unique, compact design and low weight (10 kW = 18.6 kg, 20 kW = 21.5 kg) of the DPA UPScale RI modules, inserting additional modules or replacing existing ones during operation is easy and can be performed by a single technician.
Features
- DPA UPScale RI – always protecting your critical load.
- Maximum availability.
- High level of flexibility.
- Low total cost of ownership.
