Conceptpower DPA 240 UL

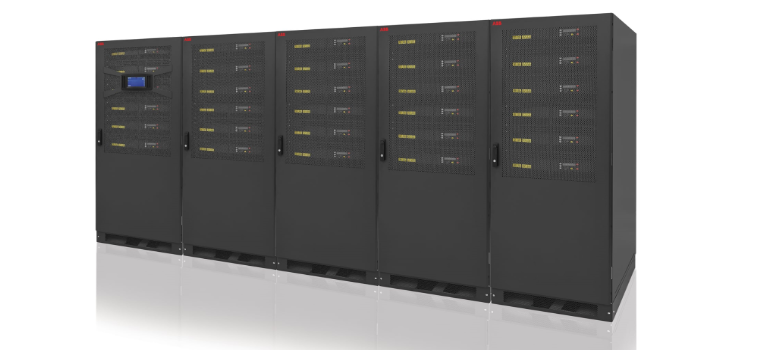

Conceived for small to mid-sized data centers, ABB’s modular Conceptpower DPA 240 uninterruptible power supply (UPS) fulfill power requirements from 40 kW to 1.2 MW at 415V and provide maximum availability for those who aim for zero downtime as well as a low cost of ownership.
Total vertical and horizontal scalability
The Conceptpower DPA 240 delivers power protection from 40 to 1.2 MW at 415V, both input and output, (one to six modules) in a single cabinet frame. Horizontal scalability is also given, with up to five frames in parallel, to increase total power up to 1.2 MW respectively. This scalability means that there is no need to over-specify the original configuration as power modules can simply be added, as needed, in the future.
True parallel architecture
This advanced UPS design provides the highest degree of protection in critical applications where the load must be fed with quality power. These Conceptpower DPA systems utilize decentralized parallel architecture and ensures the highest level of reliability and availability with true redundancy across modules.
| GENERAL DATA | Conceptpower DPA 240 UL UPS |
|---|---|
| System power range | 40kW–1.2MW |
| Nominal power/module | 40kW |
| Nominal power/frame (capacity) | 1.2MW |
| Output power factor | 1 |
| Topology | Double conversion, transformerless, modular, Decentralized Parallel Architecture |
| Parallel configuration | Up to 6 modules in one frame / up to 5 frames in parallel |
| Cable entry | Bottom |
| Serviceability | Front access only |
| Back-feed protection | Built-in (standard) |
| Connection | 5-wires, 3-phase + neutral + ground |
| INPUT | |
|---|---|
| Nominal input voltage | Y3 x 415/240V + neutral + ground |
| Voltage tolerance | < 100% (–15%, +10%), < 80% (–20%, +10%), < 60% (–30%, +10%) |
| Input distortion THDi | < 4% at 100% load |
| Frequency range | 50/60Hz ± 5% |
| Power factor | 0.99 @ 100% load |
| Walk in/soft start | Yes |
| Output | |
|---|---|
| Rated output voltage | 3 x 415/240V + neutral + ground |
| Voltage tolerance | ± 2.5% |
| Voltage distortion THDv | < 2% in linear mode |
| Frequency | 50/60Hz |
| WEIGHT, DIMENSIONS | |
|---|---|
| Weight (System with 6 modules) | 1517 lbs. (688 kg) |
| Dimensions WxHxD | 31.16" x 77.76" x 35.17" (791 x 893 x 1975.5 mm) |
The module includes
- 40kW.
- True online double conversion UPS.
- Built-in modular isolation.
- Built-in backfeed protection.
- Individual module display.
- – HMI interface with mimic diagram and LCD providing information in five languages.
The frame includes
- 240kW rated power in single frame.
- Bottom cable entry (standard).
- Rectifier, bypass terminals (single or dual-input mains connection available) and UPS output terminals.
- Battery breakers and output switches for each module set.
- Graphical color touch screen system display.
- Communication interfaces: RS-232 and USB ports, I/O dry contacts (e.g. EPO, GEN On) and external bypass interlock.
Options
- Battery monitoring.
- Seismic bracing.
- Maintenance bypass cabinet.
- Control and monitoring (Modbus RS-485, Modbus TCP/IP, SNMP, Bacnet and others).
- Line-and-match battery cabinets.
