* ABB

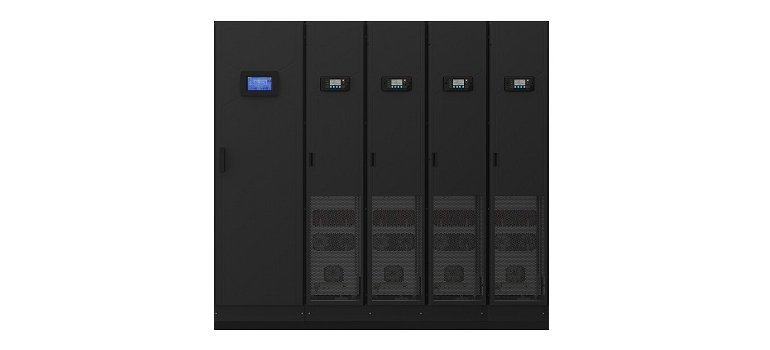

* MegaFlex DPA IEC 400V
* Conceived for medium-sized and large data centers, ABB’s DPA 500 modular uninterruptible power supply (UPS) fulfills power requirements from 100 kW to 3 MW and provides maximum availability for those who aim for zero downtime as well as a low cost of ownership.

UPS Details


MegaFlex DPA - The best in power protection

MegaFlex DPATM is designed for critical high-density computing environments across private and public enterprise, as well as data centers for colocation, hosting cloud and telecommunications.

The modular UPS is based on ABB’s decentralized parallel architecture (DPA™). This innovative system means every UPS module is practically its own UPS with all the essential functional units needed for independent operation.

The on-line double conversion UPS provides the best power protection for your critical infrastructure from 250 kW to 1,500 kW

General Data MegaFlex DPA IEC 1000 kW - RSF MegaFlex DPA IEC 1000 kW - LSF MegaFlex DPA IEC 1500 kW
System power rating [kW] 1000 1250 1500
Model power rating [kW] 250
Static byass architecture Distributed architecture
Parallel system capability Up to 6000 kW UPS system (6 x 1000 kW frames or 4 x 1500 kW frames)
Topology Online double conversion VFI-SS-111
Cable entry Bottom; Top; Mixed (Top + Bottom); Top busbar ready
Serviceability Frontal access for power frame and connection frame, removable power module with 360° access
Back-feed protection Built-in as standard
Input
Nominal input voltage 380 / 400 / 415 VAC
Voltage tolerance (referred to 3x 400 / 230 V) +15% all Loads / - 30% at partial loads
Current distortion THDi <3%
Frequency range 40 – 70 Hz
Power factor 0.99
Output
Rated output voltage 380 / 400 / 415 VAC
Voltage tolerance (referred to 400 V) < ±1%
Voltage distortion THDU <2.0%
Frequency 50 or 60 Hz (selectable)
Rated power factor 1.0

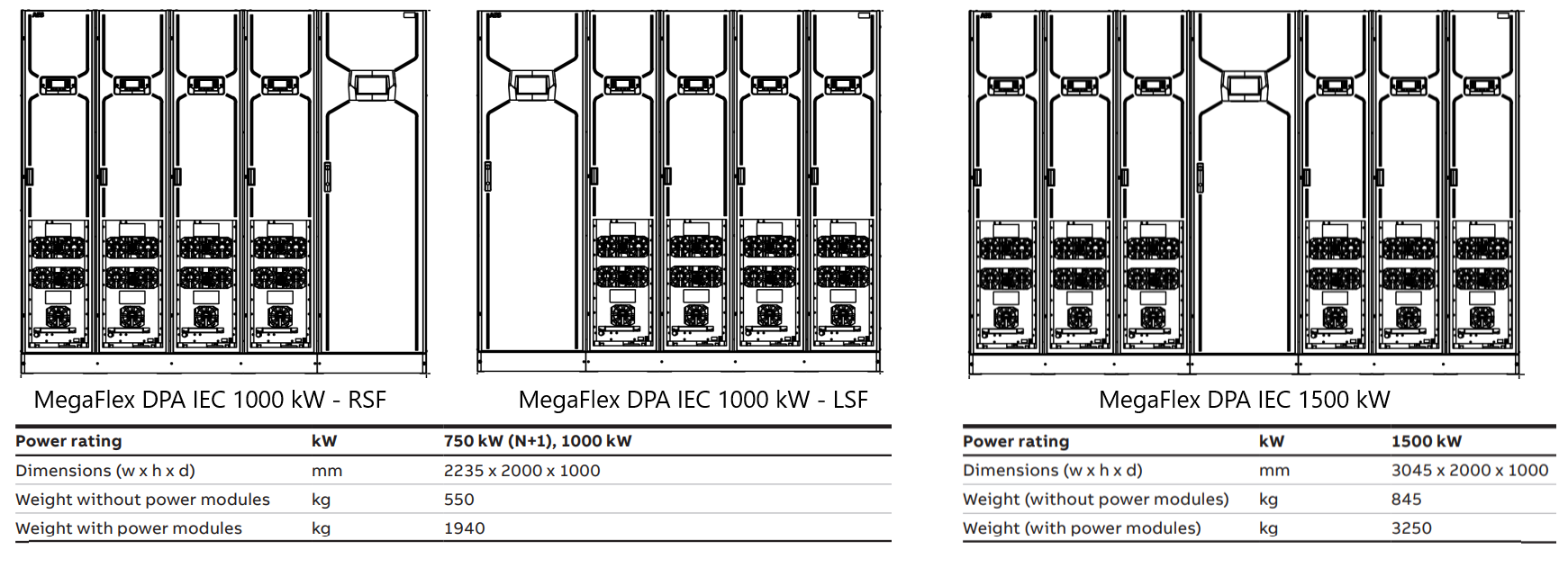

WEIGHT, DIMENSIONS
Weight [kg] with all power modules 1940 2595 3250
Dimensions WxHxD (mm) 2235 x 2000 x 1000 3045 x 2000 x 1000 3045 x 2000 x 1000
Best place of true splander

The MegaFlex DPA UPS offering

Flexible approach:

  • Easily scalable solutions.
  • Up to 1,500 kW power protection in a single UPS with add-on modules.
  • Redundant power capabilities: 1,000 kW N+1, 1,250 kW N+1.
  • Collaborative, customer-centered approach.

    • Optimized efficiency:

    • Minimized energy losses, heat dissipation and electricity cost in double conversion or eco mode.
    • Smart load-sharing optimizes energy consumption.
    • Optimized system efficiency under low load conditions with ABB Xtra VFI.

      • Reliable operations:

      • DPA™ technology maximizing power availability.
      • Online-swappable power modules for continuous uptime.
      • Automatic isolation of any faulty power module.
      • Fault-tolerant UPS design for uninterrupted power.
      • Ease of operation with local and remote real-time monitoring.

        • Simple installation and serviceability:

        • Plug-in power modules support easy, safe connections.
        • Pre-engineered power frames eliminate wiring entirely.
        • Cleans and optimizes incoming power.
        • Automatic self-configuration and testing minimizes human intervention.

          • Control and monitoring

          Features & Highlights:

          • Battery temperature.
          • Earth leakage current.
          • Fan speed variation.
          • Capacitor and fan health index.
          • Condensing humidity.
          • Output voltage behavior.
          • Output power changes.
          • Grid errors.
          • Voltage neutral to ground.
          • Load warning.
            • eolimn
